| Radio Shack TRS-80 Model I Video to Composite Adaptor Pinout Layout |
Forums > Vintage Other > Other 80s Micro's
|
AndyDiags Tinkerer -------- Joined: Dec 18, 2021 Posts: 94 Likes: 167 |
Jan 2, 2023 - #1

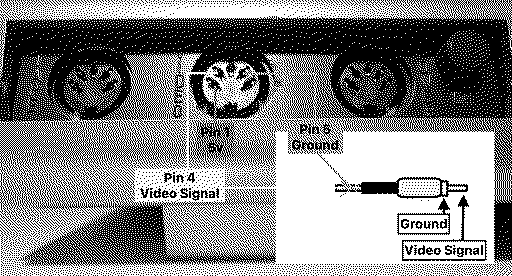

Here is the pinout for creating a composite video cable to connect from a TRS-80 to a video monitor.
Needed:

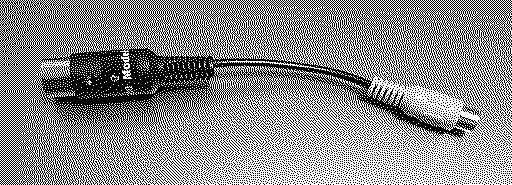

I went with creating a short adaptor cable with a female RCA plug, this way I never need to reach behind the CRT to plug it in and just use an existing composite cable plugged into the monitor. I also like to label the DIN connector with an arrow to quickly be able to tell which side is up.
Liked by LeadedSolder,Certificate of Excellenceandrdmark |
|
rdmark Moderator -------- Joined: Oct 3, 2021 Posts: 196 Likes: 260 |
May 21, 2023 - #2
Great summary, thanks for sharing! I wish it would have been as easy to "mod" the CoCo2, but alas... I have been researching various internal mods and will attempt shortly.
|
