PowerBook 1xx kickstand / flippy foot

Forums > The Lab > 3D Printing

mmu_man
Tinkerer
--------
Joined: Jan 30, 2022
Posts: 187
Likes: 125 		May 24, 2023 - #1
Not sure how to name these, but I made the model. Still untested though, and I'm not sure of the screw pitch yet.

[Image: Screenshot_20230523_023904.png][Image: Screenshot_20230523_013834.png]
Attachments:
Screenshot_20230523_023904.png [View]
Screenshot_20230523_013834.png [View]

Liked by retr01anderic

mmu_man
Tinkerer
--------
Joined: Jan 30, 2022
Posts: 187
Likes: 125 		May 24, 2023 - #2
Oh, I need to add the mirror as well, they are not symmetrical...
EDIT: done.

retr01
Senior Tinkerer
Utah, USA
--------
Joined: Jun 6, 2022
Posts: 2,474
Likes: 810 		May 25, 2023 - #3
>> mmu_man said:
Not sure how to name these Click to expand...

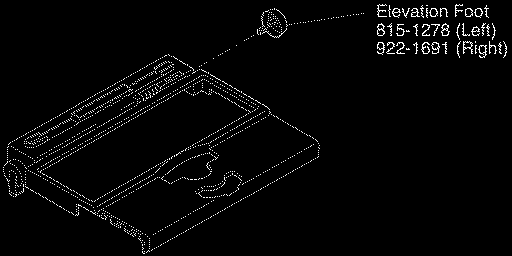

Those are elevation foot parts with Apple P/N 815-1278 (left) and 922-1691 (right). :)



Source: https://www.applerepairmanuals.com/the_manuals_are_in_here/PowerBook_140_145_B_170.pdf
Attachments:
1684980166374.png [View]
1685044335482.png [View]
