Has anyone reverse engineered the expansion connector in this PC? I did check and it's the same pin pitch as a PCI connector, minus about four pins. I was wondering if anyone has already tried to make an ISA adapter to fit like one 8 bit card in this machine.

Devalis
New Tinkerer
--------
Joined: Dec 5, 2021
Posts: 16
Likes: 0 		Feb 14, 2023 - #2
I found some info here, looking more into it:

PS/1 2011 ACU project

Hi, don't know if it's the best section to speak about personal project, but i found it to be the more suitable. so, 2011 owners surerly know one thing : ACU option is probabely rare as unicorn :D as i recently aquired a 2011, and speaking with the creator of the PS/1 ressource page...
[Image: forum.vcfed.org] forum.vcfed.org
Attachments:
forum.vcfed.org [View]

RetroTheory
Tinkerer
--------
Joined: Oct 17, 2021
Posts: 82
Likes: 127 		Feb 14, 2023 - #3

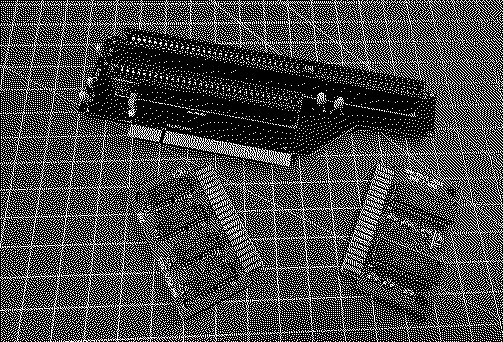

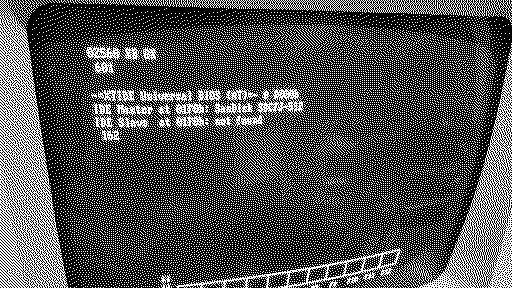

I did something like this a few years back, mainly to use cheaper sound cards but it works with a modified XTIDE bios and also works with ISA SCSI cards and network cards.

Here is the github and gerber files if you wanted to make your own, its very simple.

GitHub - retrotheory/ibmPS1_ISA-RISER

Contribute to retrotheory/ibmPS1_ISA-RISER development by creating an account on GitHub.
[Image: github.com] github.com
Attachments:
github.com [View]
github.com [View]

Devalis
New Tinkerer
--------
Joined: Dec 5, 2021
Posts: 16
Likes: 0 		Feb 14, 2023 - #4
Will that fit without the case extension?

RetroTheory
Tinkerer
--------
Joined: Oct 17, 2021
Posts: 82
Likes: 127 		Feb 14, 2023 - #5
Yes, but some 16bit cards may interfere with the floppy.

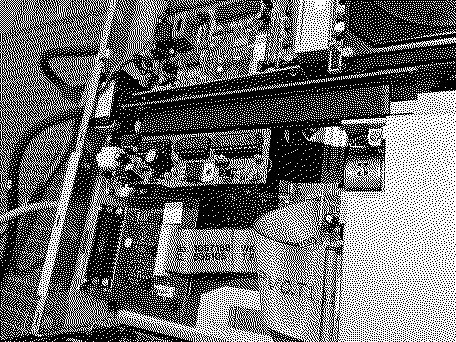

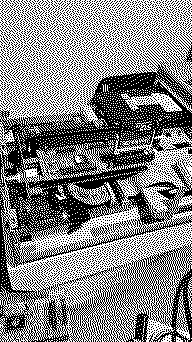

Here is a picture with a tandy style sound card
Attachments:

Devalis
New Tinkerer
--------
Joined: Dec 5, 2021
Posts: 16
Likes: 0 		Feb 15, 2023 - #6
Awesome. I plan on making this the best PS/1 2011 I can with this, Gotek, XT to IDE, RAM and maybe a bit of an overclock.
