A question for those that may have one of these specific, stock G4 Mac minis.


1.33 GHz Mac Mini ONLY

Q: Is there a resistor present at the R52 location (under the heatsink)?


Resistor location red-dotted here on a 1.25 GHz Mac mini.


And if you've ever removed (or tried to remove) your G4 Mac mini's heatsink, you might try this:

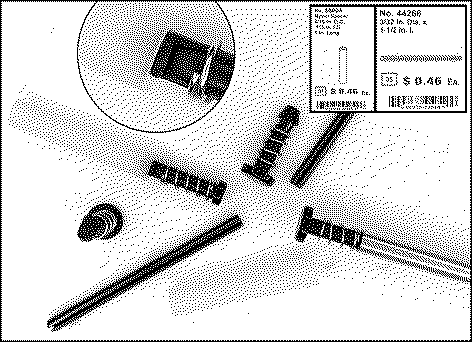

Easier heatsink removal, with a nylon spacer and steel pin from the backside.

Here you go, these are the original factory settings on a 1.33ghz G4

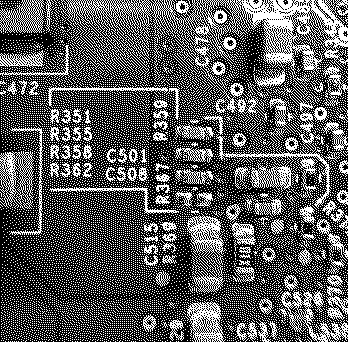

Here's the backside resistors in case you're interested in those as well:
